Momentum-EQ
The Ultimate Portable Digital X-ray Solution for Equine Veterinary Practices
Enhance your equine veterinary services with the Momentum-EQ system from 20/20 Imaging. This all-in-one digital radiography (DR) solution is engineered for mobility, durability, and superior imaging quality, making it an ideal choice for field diagnostics and in-clinic use.
Weighing under 18 lbs, the Momentum-EQ system combines a lightweight aluminum design with a rugged, scratch-resistant finish, ensuring ease of transport and resilience in various environments. Its ergonomic custom holders and built-in positioner facilitate quick setup and precise imaging, while the all-in-one charging system simplifies power management with a single cable.
At the heart of the system is a 10" x 12" premium wireless DR panel featuring a cesium scintillator for high-resolution images. This panel offers a battery life exceeding 150 images over 4 hours and supports rapid charging, ensuring uninterrupted workflow during demanding schedules.
The Momentum-EQ is powered by the latest Ultra Acquisition Software, providing a user-friendly interface, automated image processing, and optimized image quality with every scan. Equine-specific protocols and the optional REALISM™ enhancement further refine image sharpness, particularly for high-frequency microstructures like bone trabeculae.
Optional battery-powered generators, such as the VET-BT20 and SPX-018, complement the system by offering lightweight, portable power solutions tailored for equine imaging needs. With professional installation, comprehensive training, and a 3-year warranty, the Momentum-EQ system is a reliable investment for veterinary practices aiming to elevate their diagnostic capabilities.

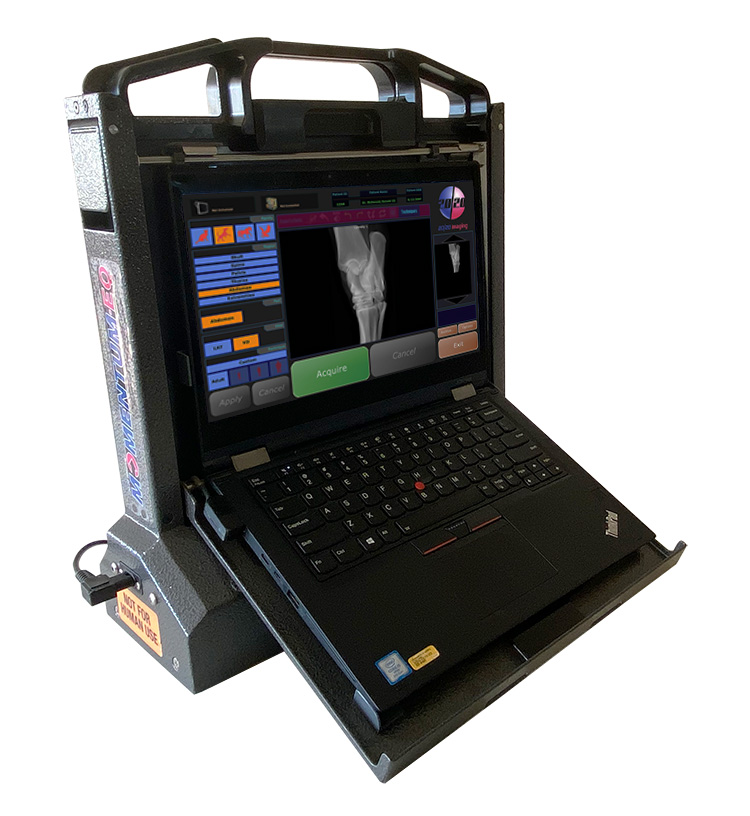

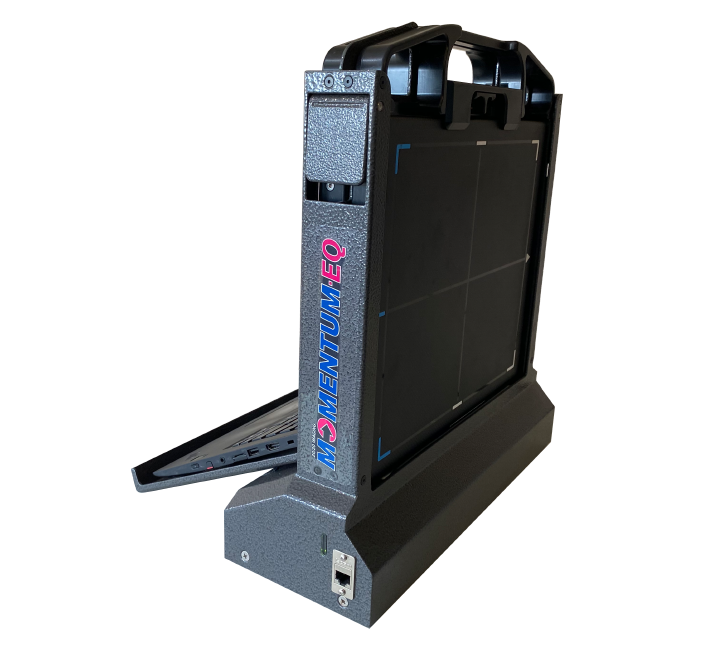

Momentum-EQ
- The Lightest at Under 18 lbs
- Custom holders and design is only available on MO-EQ
- Custom Tablet Enclosure
- Built in Positioner
- All in one Charging
- Charge Everything with one power cable
- Ergonomic Custom panel and Tablet holders
- Accommodates all size hands for easy handling
- Rugged
- Lightweight Aluminum durable design
- Scratch Resistant Finish

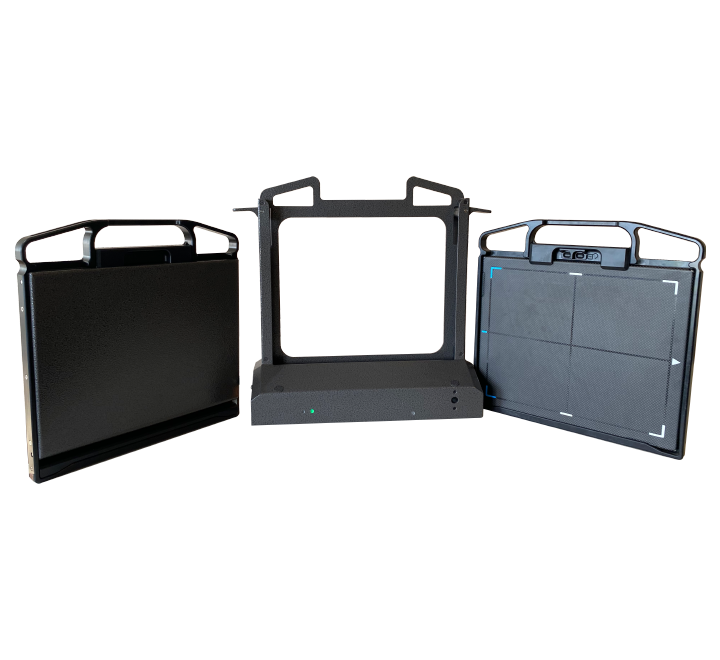

10x12 Premium DR Panel
- Lightest panel & holder at 4lbs
- Scintillator: CsI (Cesium)
- Cassette sized
- Imaging Area: 10" x 12"
- 16-bit AD Conversion
- Battery Life: > 150 images/4hrs
- Rapid Charge enabled
- Warranty: 3 years (7 year lithium-ion capacitor)
Optional Generators

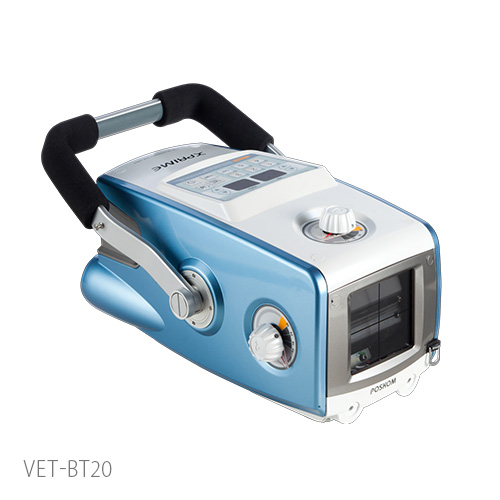

- VET-BT20 Battery powered Portable Generator
- 1.6kW, 20mA / 90 kV
- Wireless Charging

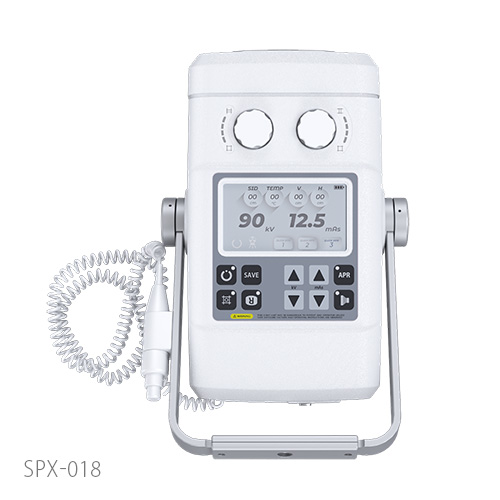

- Lightweight 16lb SPX-018 Battery powered Portable Generator
- 1.8kW, 40mA / 90 kV
- 5” Touch LCD OP with preset APRs
- Lightweight 16lb

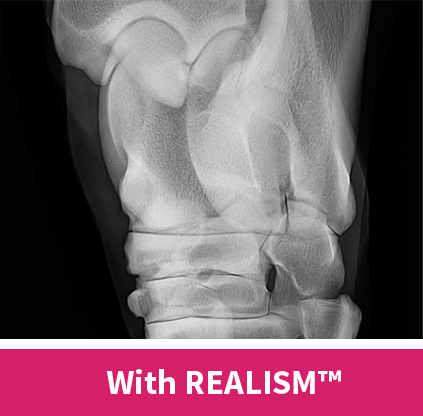

REALISM™
The MOMENTUM-DR wireless flat panel detector, due to its higher sensitivity, requires less X-ray exposure. REALISM™ enhances the sharpness of high frequency microstructures, such as bone trabeculae for improved visibility. Combined with the resolution MOMENTUM-DR fine detail is even more pronounced.

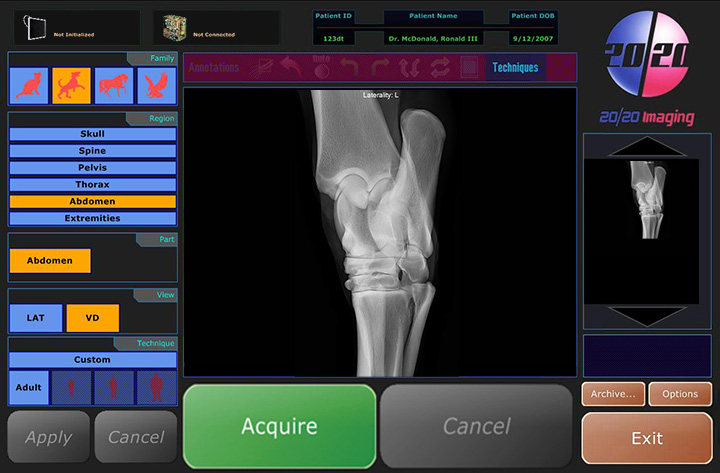

Equine Optimized Software
- Latest Ultra Acquisition Software Solution
- User-friendly Interface
- DR Console, Clinical Review, and Image Storage
- Automated Image Processing
- Produces an optimized image - every time
Remote Install & Training
- Step-by-Step system setup by professional 20/20 certified installer
- Full training included
- Follow up Q&A post-installation
Warranty
- 3 Year Warranty
- Experienced live technician support after installation
