Straight-Arm Full X-Ray Solution
High frequency Straight-arm x-ray Unit with high definition flat panel DR capable of both dynamic & static imaging
Upgrade your chiropractic clinic with the 20/20 Imaging Complete Chiropractic Straight-Arm (CSA) Digital X-ray System. This all-in-one solution combines advanced digital radiography, a versatile X-ray generator, and intuitive chiropractic imaging software. Designed for chiropractic practices of all sizes, the CSA system features a compact, floor-mounted design and a motorized variable Source-to-Image Distance (SID), making it an ideal fit for a variety of office layouts—even those with lower ceiling heights.
The system’s 17” x 17” DR flat panel detector delivers sharp, high-resolution images within seconds of exposure, improving diagnostic confidence and streamlining patient workflow. Integrated with 20/20 Imaging’s powerful Symmetry-Sync software, chiropractors gain access to essential tools like Orthogonal Analysis, Gonstead measurements, and full-spine stitching. This comprehensive software suite simplifies image acquisition, processing, and review—saving time while enhancing clinical accuracy.
With multiple generator power options available, the CSA system can be customized to meet the imaging demands of your practice. Professional installation, training, and industry-leading warranties ensure a smooth transition to digital imaging and reliable performance for years to come.
Meet the system:

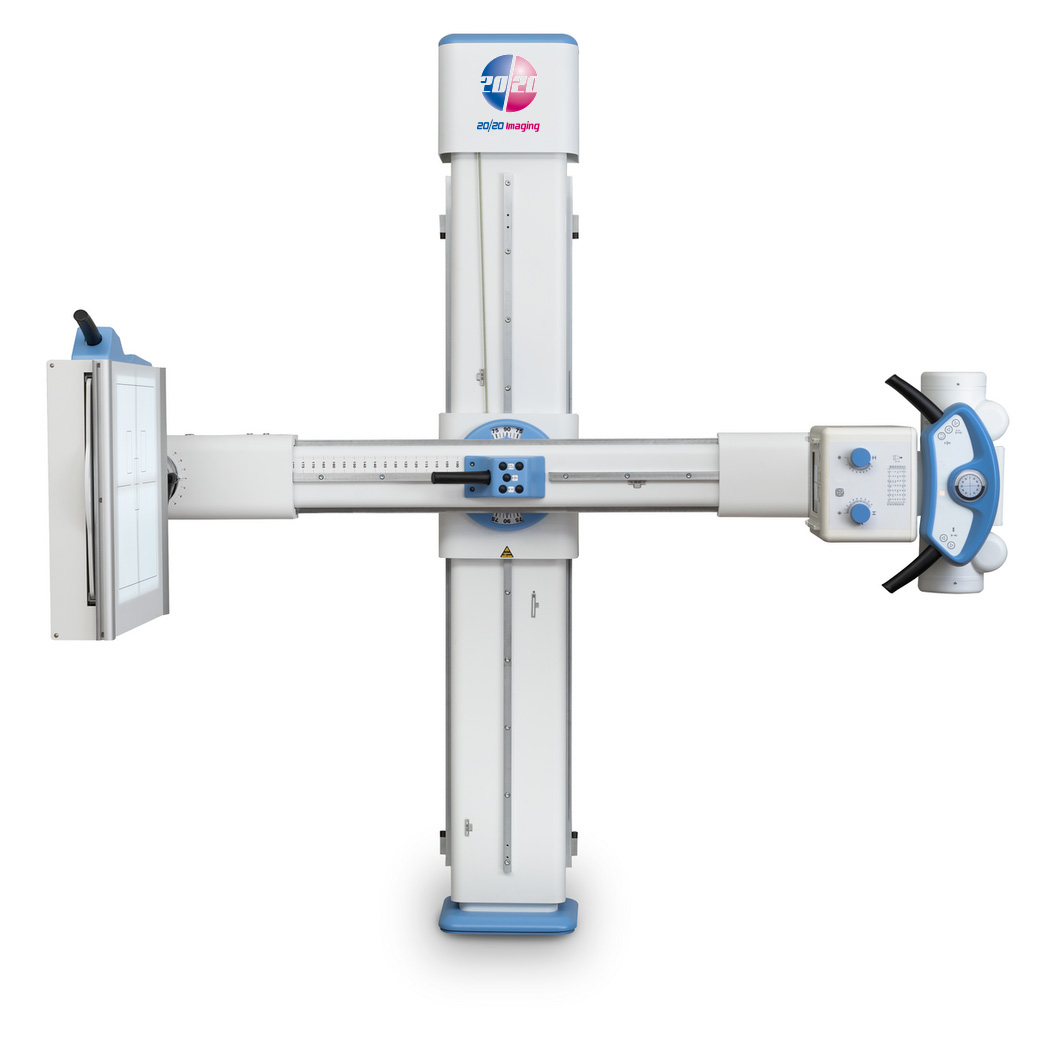

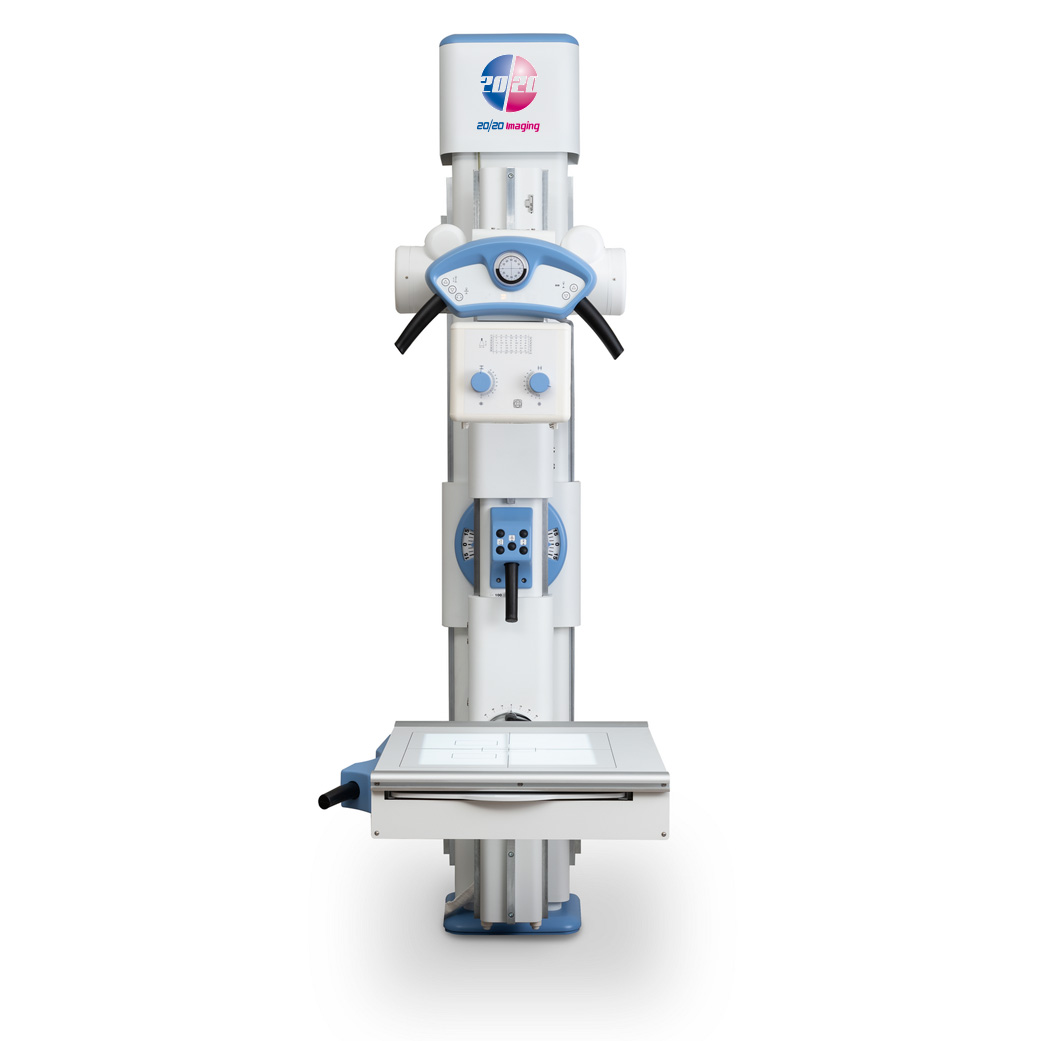

Straight Arm X-Ray
- Motorized Variable SID
- Floor Mount 8’ Foot 9” ceiling
- H.T. Cables

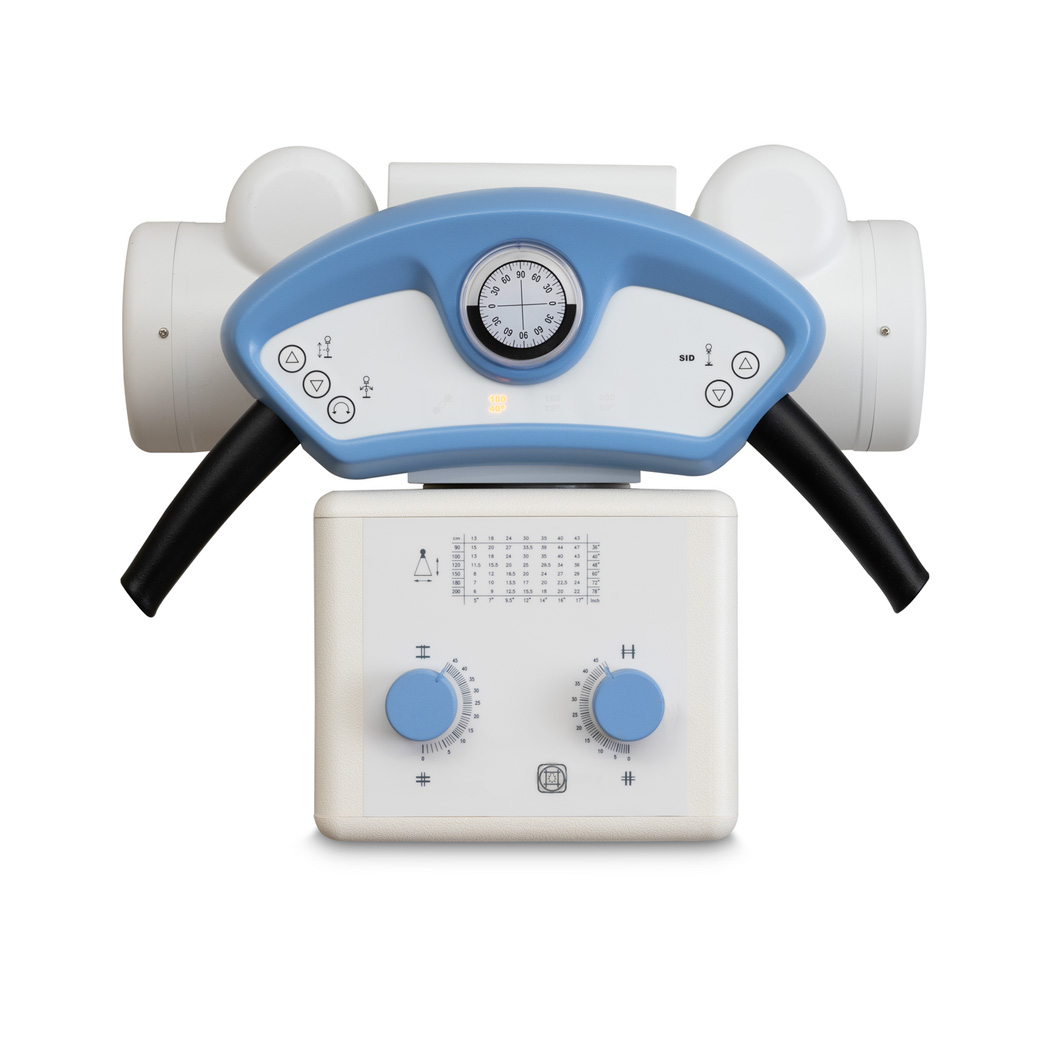

- Manual Collimator
Specifications
- X-Ray Generator: SHF415 40KW, single phase 208 volt
- X-Ray Tube: E7884X 150Kvp 300,000 HU 0.6-1.2mm FS
C-FPT (Cassette Size Flat Panel) Detector
5 YEAR WARRANTY
- Fixed Tethered Interface
- 17”x17” Imaging Area
- 139 µm
- 3.6 lp/mm
- AD conv. 16-bit
The versatile Flat Panel DR system offers images within seconds of exposure and fits easily into smaller x-ray rooms. The 17x17 inch panel produces high quality images and is configurable on multiple chiropractic stands. FP offers true flatpanel technology.
Acquisition Interface
Superior Image Quality
- Sharper images, optimized clarity
- Configured for grid suppression
- Quick view selection
- Customizable image sharpness level
- Auto Contrast upon processing
- Image auto-shutter/crop
- Images auto-save during acquisition to Server for immediate access in exam rooms
PC Hardware
Business Class Components†
Small Form Factor All-in-One PC
- Intel Processor, 32GB RAM
- Dual 2TB NVMe (Mirrored) Storage
- Wi-Fi 6E + Dual Ethernet
24" LED IPS 2MP Touchscreen Monitor
- 10-point Touchscreen
- High Quality Display for optimized viewing
- VESA Wall-mount compatible
Symmetry-Sync Software
↑ Multi-functional Studylist
- Enhanced Security & Data Protection
- Customizable Workflow & Interface
- Full PACS Functionalities included
- View from anywhere, anytime*
← Diagnostic Client DICOM Image Viewer
- User friendly & Easy to Use
- Full Clinical Toolset included
- Customizable toolbox for your favorite tools
← Zero-footprint Web DICOM Image Viewer
- Utilize any web browser
- Requires no installation, runs through browser
- Customizable tools & layouts
Included Chiropractic Tool-Set
- Advanced Orthogonal Analysis
- Gonstead measurements
- Upper Cervical Analysis
- George’s Lines
- Ilium Analysis
- Line Drawing
- Measuring
- Angles (Regular, Cobb)
- Cervical Curve
- Lumbar Curve
- Orthospinology
- Full Spine Stitching
- Spine Labeling *DC Tools-Set Included
On-Site Install & Training
- System setup by professional 20/20 certified installer
- Full training for both doctors and x-ray techs
- Monitoring by tech to ensure entire trained staff is completely comfortable
Warranty
- CSA X-Ray: Contact sales for details
- 17X17 FP DR Panel: 5 year warranty
- PC Components: 3year full on-site incl. parts †††
- Experienced live technician support after installation
*World-wide access includes web license, however a certified IT personnel must configure Server PC at expense of customer
† Lenovo & Dell brand and PC components/models/specifications may differ and are subject to change. Lenovo logos and photos copyright Lenovo. Dell logos and photos copyright Dell.
***Cloud-Backup is only running and monitored with a valid support agreement. Data recovery can only be performed with a valid support agreement.
