DR Panel & High Frequency X-Ray
Complete PODIATRY High Frequency Digital X-Ray System
Discover a complete digital podiatry X-ray system from 20/20 Imaging, built to meet the demands of modern foot and ankle care. Each system includes a high-frequency digital X-ray unit with full generator integration for efficient imaging and reliable performance. Choose from four high-quality digital DR panel options ranging from 10x12 all the up to 14x17, tailored to fit your workflow and imaging needs.
At the core of the system is our all-in-one Symmetry-Sync software, which combines acquisition, viewing, and PACS functionality in a single, intuitive platform. It also includes a dedicated Podiatry Toolset with specialized measurement and analysis features designed specifically for podiatric practices.
To ensure a smooth transition and maximum productivity, on-site installation and training are included—providing your team with the confidence and support needed to get started quickly. Whether upgrading from film or modernizing your current setup, 20/20 Imaging delivers a fully integrated, turn-key solution for superior digital podiatry imaging.
Meet the system:
The HF PXS-710D is our best selling high frequency x-ray system with full software integration for ease of use.
HF PXS-710 X-RAY
Qualifies for ADA Tax Credit
High Frequency output
UL & CUL listed
- 1/2 radiation dose, twice as efficient
- 0.5mm Focal Spot
- enhanced image quality, extended tube life
Versatile sensor positioning
- improve patient throughput
3.5in. low base
- improved step height for patient use
- integrated cable management
- maximum weight bearing material
- Enhanced Patient support rail system
X-ray unit can also be used with conventional film / CR Scanner, or as a complete DR solution
- 0.5mm Focal Spot
- improves signal to noise ratio
- lightweight design
- easier to maneuver
High Frequency Tube Head
- Maximum weight bearing
Durable Base Board
- DR Panel cables integrated inside of base
- easier to maneuver
- optional remote control extension
Cable Integration
DR Panel Choices
All 20/20 Imaging DR panels use advanced Cesium Iodide (CsI) detectors to deliver high-resolution digital X-ray with lower patient dose — ideal for the fine detail required in podiatric imaging. Each panel is supplied with a custom holder designed to integrate seamlessly with the PXS-710 podiatry X-ray system. With multiple sizes, wireless and tethered options, and available extended warranties, these DR panels give podiatrists the clarity, efficiency, and reliability needed to streamline exams and improve patient care.
- 5 Year Warranty
- Cesium Scintillator
- Active Image Area: 13.75"x16.75"
- Wireless connectivity
- 150micron | 3.4lp/mm
- AD conv. 16-bit
- Inc. 2 batteries
WIRELESS 14x17 UNIVERSAL DR PANEL
- 5 Year Warranty
- Cesium Scintillator
- Active Image Area: 10"x13"
- Wireless connectivity
- 100micron | 5lp/mm
- AD conv. 16-bit
- Inc. 2 batteries
- Extended battery life
WIRELESS 10x13 UNIVERSAL DR PANEL
- 3 Year Warranty
- Cesium Scintillator
- Active Image Area: 9.34"x11.8"
- Tethered connectivity
- 125micron | 4lp/mm
- AD conv. 16-bit
UNIVERSAL DR 1012V PANEL
- 3 Year Warranty
- Cesium Scintillator
- Active Image Area: 9.6"x11.6"
- Wireless connectivity
- 100micron | 5lp/mm
- AD conv. 16-bit
- 7-yr lithium-ion capacitor warranty
WIRELESS 10x12 MOMENTUM DR Panel
14x17 Universal DR Wireless Panel (Cesium Flatpanel)
When coverage is the priority, the 14×17 wireless panel steps up with 50% more active area* than 10×12 models. This larger field reduces the need for multiple exposures, making it a strong fit for imaging larger anatomy. With direct-deposition CsI and solid wireless performance, it balances breadth with efficiency.
10x13 Universal DR Wireless Panel (Cesium Flatpanel)
Rounding out the lineup, the 1013X wireless panel fills the middle ground. With its true 10×13 active area, it offers more coverage than the compact 10×12 without the size of a 14×17. Its 100-micron resolution and ergonomic holder make it easy to maneuver while still producing crisp, detailed studies — a smart option for practices that need flexibility across patient types.
1012V Universal DR Tethered Panel (Cesium Flatpanel)
For sites that prefer the certainty of a wired connection, the 1012V tethered panel offers a compact, cassette-sized 10×12 format. Its hard-wired reliability makes it ideal for small exam rooms or offices where wireless use isn’t practical, while still delivering sharp cesium image quality in a familiar footprint.
1012 Momentum Wireless Panel (Cesium Flatpanel)
The Momentum DR wireless panel is built for clinics that can’t afford downtime. Its unique capacitor power design means there are no batteries to swap or charge, so it’s always ready to go. Combined with REALISM™ image processing, it delivers superior contrast and helps distinguish overlapping structures — the choice for busy practices where speed and diagnostic confidence matter most.

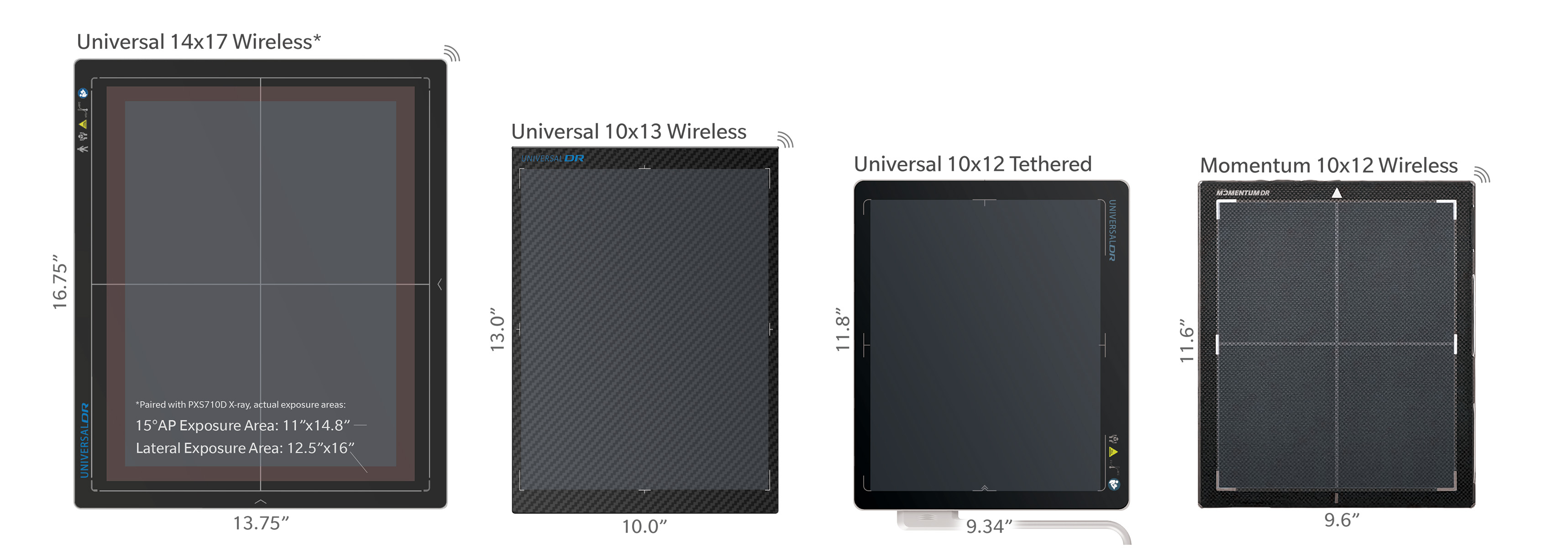

Compare Panel Active Areas:
Software Integration
Acquire Software/Generator Integration
- Anatomical Program Selection
- Preset x-ray techniques & exams
- Selection directly at workstation
Superior Image Quality
- Sharper images, optimized clarity
- Quick view selection
- Customizable image sharpness level
- Auto Contrast upon processing
- Image auto-shutter/crop
- Images auto-save during acquisition to Server for immediate access in exam rooms
PC Hardware
Business Class Components†
Small Form Factor All-in-One PC
- Intel Processor, 32GB RAM
- Dual 2TB NVMe (Mirrored) Storage
- Wi-Fi 6E + Dual Ethernet
24" LED IPS 2MP Touchscreen Monitor
- 10-point Touchscreen
- High Quality Display for optimized viewing
- VESA Wall-mount compatible
Symmetry-Sync Software
↑ Multi-functional Studylist
- Cybersecurity features
- Customizable Workflow & Interface
- Full PACS Functionalities included
- View from anywhere, anytime*
← Diagnostic Client DICOM Image Viewer
- User friendly & Easy to Use
- Full Clinical Toolset included
- Customizable toolbox for your favorite tools
Zero-footprint Web DICOM Image Viewer
- Utilize any web browser
- Requires no installation, runs through browser
- Customizable tools & layouts
Included Podiatric Tool-Set
- Hallux Interphalangeus
- Hallux Abductus
- First Intermetatarsal
- P.A.S.A.
- D.A.S.A.
- Metatarsus Adductus
- Total Adductory Angle
- Metatarsal Parabola
- Metatarsal Protrusion
- Talo-Calcaneal
Pre-configured Exams
- Time saving Pre-configured exams
- Fully customizable
- Reduces technician errors
- Fast-switching to all views
- Add & remove views on the fly
On-Site Install & Training
- System setup by professional 20/20 certified installer
- Full training for both doctors and x-ray techs
- Monitoring by tech to ensure entire trained staff is completely comfortable
Warranty
- DR Panels: 3-5 year warranty
- PXS710D X-Ray: 5yr mechanical, 3yr tube/electrical
- PC Components: 3year full on-site incl. parts†††
- Experienced live technician support after installation
*World-wide access includes web license, however a certified IT personnel must configure Server PC at expense of customer
† Lenovo & Dell brand and PC components/models/specifications may differ and are subject to change. Lenovo logos and photos copyright Lenovo. Dell logos and photos copyright Dell.
