Veterinary Solutions

Digital Retro-fit Solutions

V-DR, V-FP, & V-FPW - Retrofit Veterinary Solutions

Additional System Configurations available

20/20 Imaging brings 20/20 vision to your practice offering a custom retrofit DR configuration to accommodate your facility with the existing x-ray equipment. Our latest DR technology is a giant leap forward, bringing the very latest technology of digital imaging to your practice. The H-DR HG+ is our newest & most complete DR system; including the panel, acquisition workstation, exposure interface, cabinet, encased grid, mounting hardware, high end computer technology, full Opal-RAD software package with the most robust features, extended warranties, and an on-site installer and trainer to make sure you are comfortable and 100% satisfied.

Complete Veterinary Interface

Enjoy a completely tailored veterinary experience. Patient demographics include the Animal name and breed, and owner name and information. The acquisition will also show four categories of animals, with specific views set for each animal.

V-DR HG+ Panel (CCD Technology)

20/20 V-DR’s 14x17 sensor directly captures the image data and displays it on an acquire computer workstation within 10-12 seconds from exposure. It is adaptable to most existing x-ray systems. CCD technology produces a high quality image at a lower cost over flatpanel.

V-FP Tethered Panel (Flatpanel, Cesium)
The versatile Flat Panel DR system offers images within seconds of exposure and fits easily into smaller x-ray rooms. The 17x17 inch panel produces high quality images and is configurable on multiple veterinary tables. FPG offers true flatpanel technology.

V-FPW Wireless Panel (Wireless Flatpanel, Cesium)
All new wireless connectivity. Eliminate the need for a static wired connection & the need to run extra cabling. The 14x17 inch panel produces high quality images wirelessly.

V-FPH Hybrid Panel (Hybrid Flatpanel, Cesium)
Enjoy 3 unique operating configurations with the 17x17 hybrid, including full wireless, wired power connection, and wired (fixed) power and data connections. Providing the most in versitility with exceptional image quality, and paired with advanced soware features and functionality.

Retro-fit Configurations

20/20 Imaging offers a custom retrofit DR configuration to accommodate your facility with the existing x-ray equipment.


Panel Options

    VDR Economical (CCD) Detector
  • 4 Year Warranty
  • 14”x17” Imaging Area
  • Economical CCD Technology
  • 3.2 lp/mm
  • AD conv. 12-bit
    VFP (Flat Panel) Detector
  • 5 Year Warranty
  • 17”x17” Imaging Area
  • Detector Housing
  • 3.5 lp/mm
  • AD conv. 14-bit
    VFPW (Wireless Flat Panel) Detector
  • 5 Year Warranty
  • 14”x17” Imaging Area
  • Wireless connectivity
  • Cassette sized
  • 3.3 lp/mm
    V-FPH (Hybrid Flat Panel) Detector
  • 5 Year Warranty
  • 17”x17” Imaging Area
  • Wireless and tethered connectivity
  • Cassette sized
  • 3.6 lp/mm




Acquisition Interface

Superior Image Quality
  • X-Pipe Technology: sharper images, clarity
  • Configured for grid suppression
  • Quick view selection
  • Customizable image sharpness level
  • Auto Contrast upon processing
  • Image auto-shutter/crop
  • Images auto-save during acquisition to Server for immediate access in exam rooms

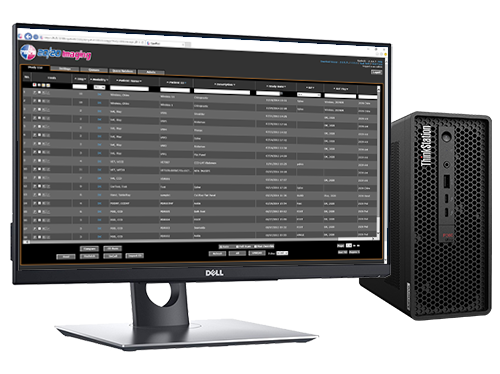

PC Hardware

Dell™ brand Business Class Components
Server PC (Full PACS)*
  • Core i5, 4GB ram
  • 1TB RAID 1 mirror (failsafe system)
23" LED/LCD 2MP Viewing Monitor
  • Portrait view ready
Off-site backup system
  • 2.5" lightweight portable hard drives (2)


Opal-VET Software

Multi-functional Studylist (see above)
  • Burn/Import CDs
  • Compare images (post/pre op)
  • Custom search/query
  • Customize user privileges
Viewer (see left)
  • User friendly, DICOM compliant, DPM Tools
  • 5 additional viewing licenses included
  • WORLDWIDE access: view from anywhere!*

VHS (Vertebral Heart Score tool)

    The Long Axis & Short Axis heart dimensions are transposed onto the vertebral column and recorded as the number of vertebrae beginning with the cranial edge of T4. The values are then added to obtain the vertebral heart size. Normal values are 9.7 +/- 1.0V for dogs, and <8V for cats

    *VHS Tool Included


Realtime Cloud Backup

  • Add Cloud-Backup at anytime! Add'l fee applies***
  • Live synchronization in the background
  • Secure 448-bit encryption for all data traffic
  • Enterprise grade software (CrashPlan Enterprise)
  • Customizable to meet office bandwith needs
  • Safe & Secure, Worry-Free

On-Site Install & Training

  • System setup by professional 20/20 certified installer
  • Full training for both doctors and x-ray techs
  • Monitoring by tech to ensure entire trained staff is completely comfortable


  • 14X17HG+ DR Panel: 4 year warranty
  • 14X17 V-WFPG Wireless Dr Panel: 5 year warranty
  • 17X17 V-FPG DR Panel: 3 year warranty
  • PC Components: 3year full on-site incl. parts
  • Experienced live technician support after installation
